Description :
Product Overview
CPE9 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Key Features
- 2.4GHz 11n 150Mbps
- 12dbi directional antenna
- IP64 waterproof enclosure
- AP,Station,WISP operating mode supported
- Up to 60 meters of flexible deployment with included PoE Injector
Product Features
5km+ transmission Range
CPE9 adopts of independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Auto-bridge For Two Device
CPE9 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup.
Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, CPE9 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment.
Multiple Application Scenario
Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.
WISP(Client+Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.
Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that CPE3 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.
Easy to setup, Easy to manage
CPE3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Controller.
Application Scenarios
CPE9 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
Product Specifications
| Product Model | CPE9 | |||
| Deployment | Pole Mount | |||
| Dimensions | 270mm*94.86mm*67.5mm | |||
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance | |||
| Hardware Specifications | ||||
| Frequency Range | 2.4GHz | |||
| Maximum wireless speed | 150Mbps | |||
| Interface | 2*10/100Mbps Ethernet Port | |||
| Antennas Gain | 12dbi | |||
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° | |||
| Reset Button | 1 | |||
| GND | 1 | |||
| Maximum Power Consumption | 4.3W | |||
| Waterproof Level | IP64 | |||
| LED indicator | PoE/LAN,LED1,LED2,LED3 | |||
| Power Method | 12V1A Passive PoE | |||
| Lightning Protection | 6KV | |||
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) | |||
| Voltage range: 11-13.8VDC | ||||
| Receiver sensitivity | MCS0: -96dbm | |||
| MCS7: -72dbm | ||||
| Software Specifications | ||||
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router | |||
| Compliant Standards | IEEE 802.11b/g/n | |||
| Enable/Disable Wireless Radio | Support | |||
| SSID Hidden | Support | |||
| Wireless Client isolation | Support | |||
| SSID Isolation | Support | |||
| Client Limitation For SSID | Support | |||
| Wireless Access Control | Support | |||
| Weak Signal Client Limitation | Support | |||
| Transmission Power | Adjustable power by 1dBm | |||
| WMM Capable | Support | |||
| APSD Capable | Support | |||
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 | |||
| Transparent Bridge | Support | |||
| VLAN Tagging for SSID | Support | |||
| DHCP Server | Support | |||
| VPN Pass-Through | PPTP,L2TP | |||
| Remote Web access | Support | |||
| Schedule Reboot | Support | |||
| Page Timeout | Support | |||
| Ping Watchdog | Support | |||
| Dyndns | noip, dyndns.org | |||
| Network Diagnoses | Ping, Traceroute, Signal Scan | |||
| Time&Date Setting | Support | |||
| Firmware upgrade | Support | |||
| Backup/Restore Conguration | Support | |||
| Username Managerment | Support | |||
| System Log | Support | |||
| Managed By Controller | PC Software -- CPE Controller | |||
| Working Environment | ||||
| Package Contents | 1*5km Point to Point Outdoor CPE | |||
| 1*Power Adapter | ||||
| 1*PoE Injector | ||||
| 2*Plastic Staps | ||||
| 1*Quick Installation Guide | ||||
| Operating Temperature | -30℃ ~ 60℃ | |||
| Storage Temperature | -40℃ ~ 70℃ | |||
| Operating Humidity | 10%~90% non-condensing | |||
| Storage Humidity | 10%~90% non-condensing | |||
| Default IP | 192.168.2.1 | |||
| Default Login Username | admin | |||
| Default Login Password | admin | |||
| Certifications | CE/RoHS | |||
Product Show
Check This Video Reviews (Tenda O3 5KM Wifi Router Setup)-Tenda o3 wireless 5km outdoor point to point cpe -Configuration
Check This Video Reviews Tenda O3 5km Outdoor Point To Point CPE Unboxing
Best Price Comparison With 5km Point to Point Outdoor CPE 150Mbps Outdoor CPE Wireless WiFi Repeater Extender Router AP Wi-Fi Bridge with POE Adapter
2.4GHz nRF24L01P Wireless rf Module for networking 2.4G SPI 1mW 120m Transceiver with PCB antenna SMD Transmitter and Receiver
Buy Now On Aliexpress
SC-APC to SC-UPC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC/UPC Polish Yellow Jacket OFNR Fiber Cable
Buy Now On Aliexpress
SC-APC to FC-APC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC Polish Yellow Jacket OFNR For Long Distances
Buy Now On Aliexpress
2.4G Wireless rf Module 120m 1mW DIP SPI rf Transmitter and Receiver nRF24L01P PCB antenna RF module
Buy Now On Aliexpress
100Pcs RJ11 6P2C Telephone Internet Modular Plug Jack RJ11 Connector 2pin Telephone crystal head
Buy Now On Aliexpress
SC-UPC to FC-APC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC/UPC Polish Yellow Jacket OFNR Fiber Cable
Buy Now On Aliexpress
100Pcs RJ11 6P4C Telephone Internet Modular Plug Jack RJ11 Connector 4pin Telephone crystal head
Buy Now On Aliexpress
433MHz rf Module CC1101 Wireless Transmission SPI rf Transmitter and Receiver 10mW wireless transceiver IPEX
Buy Now On Aliexpress
100Pcs Cat6 RJ45 Connector 8P8C Modular Ethernet Cable Head Plug Gold-plated Cat 6 Crimp Network RJ 45 Connector Cat6
Buy Now On Aliexpress
3m (10ft) SC UPC to SC UPC Simplex OS2 Single Mode PVC (OFNR) 3.0mm SC-SC Singlemode Simplex 9/125 Fiber Optic Patch Cable
Buy Now On Aliexpress
COMFAST High Power Outdoor Wireless Router CPE 500mW 300Mbps Outdoor AP Dual 5dBi Antenna WIFI Extending Network Bridge CF-EW71
Buy Now On Aliexpress

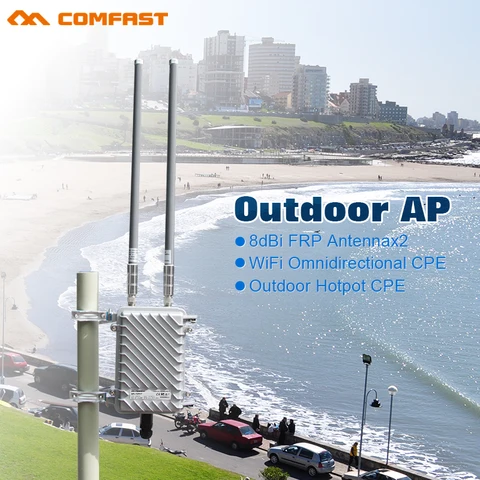

COMFAST HIGH power omni directional wireless AP outdoor WiFi coverage base station wireless router for school park Wifi CF-WA700
