Description :

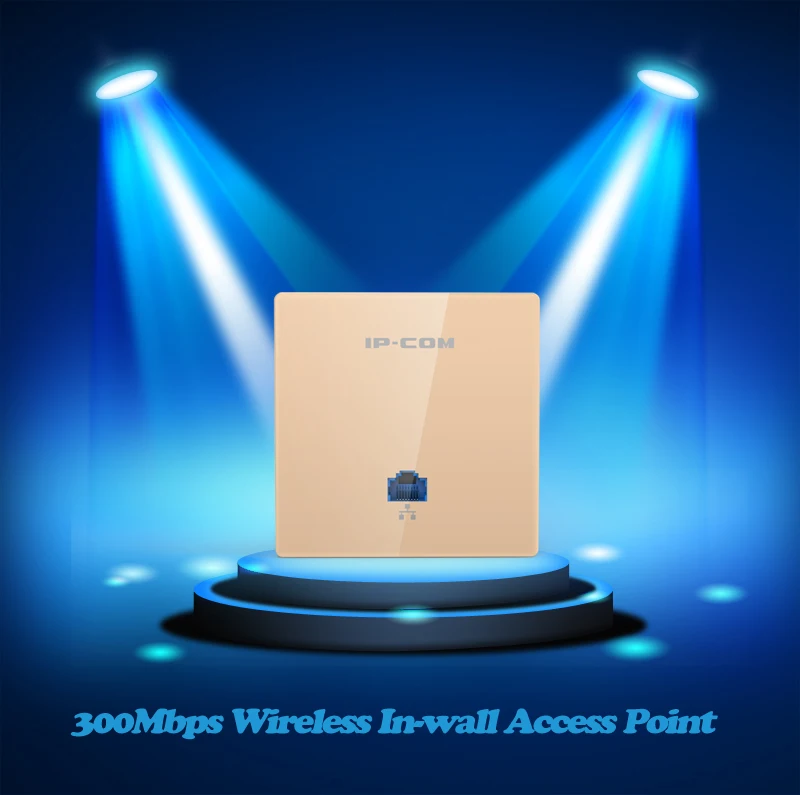

Product Overview
W30AP is designed to provide wifi for hotel rooms,villa, large apartment etc premise. Adopt of 86 Type wall mount junction box design, it can blend into existing decoration perferctly without any damage. Compliant with PoE 802.3af standard enable it to be deployed quickly. It is easy to setup, manage and monitor with IP-COM AP controller.
Key Features
- 2.4GHz 11n 300Mbps
- Two 10/100Mbps LAN ports
- Compliant with PoE 802.3af
- Vlan tagging for multi SSID
- 86 Type wall mount junction box design
- Centralized managed by AC1000/AC2000/AC3000
Product Features
11n Wireless 300Mbps
W30AP adopts of 11n wireless standard and wireless rates up to 300 Mbps on the 2.4GHz frequency band. The devices such as smart phone, laptop connect to it can enjoy smoother video streaming and faster file transmission.

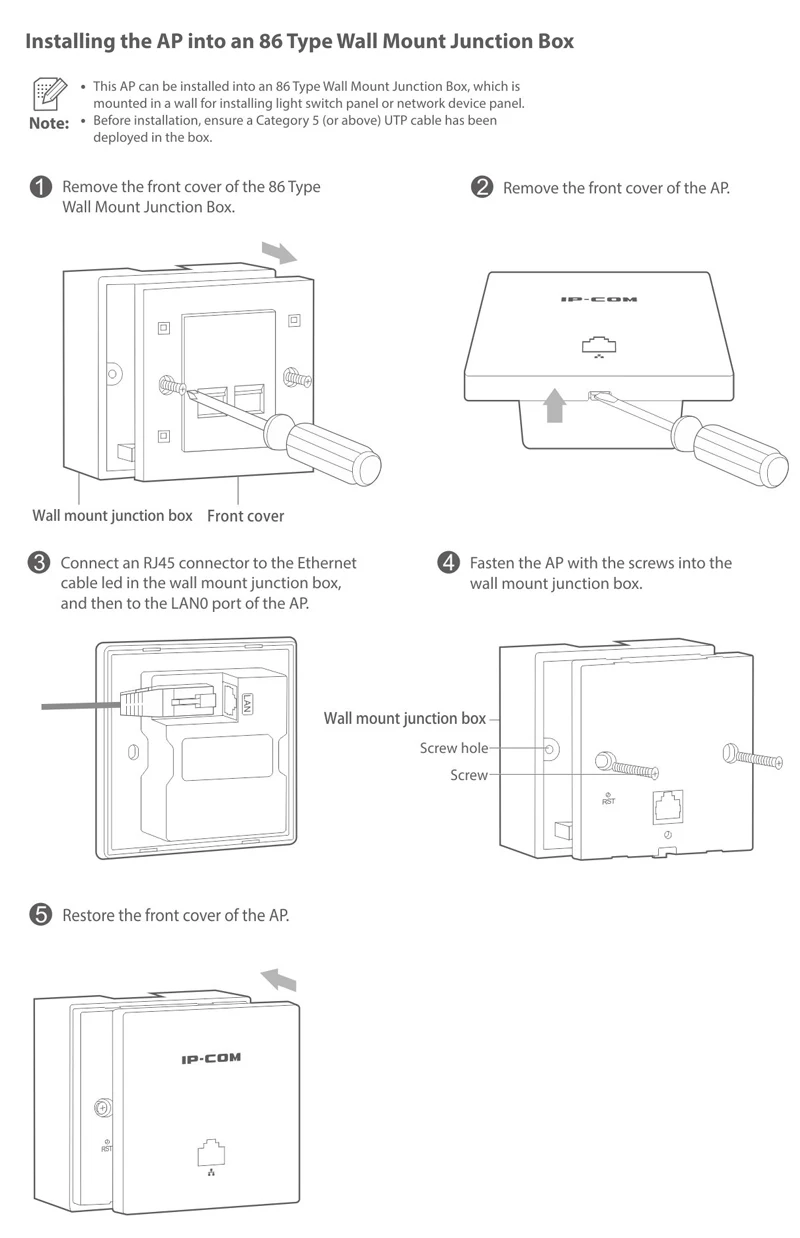

86 Type wall mount junction box design
W30AP adpots of 86 Type wall mount junction box design to blend into the existing decoration.It will pose no problem to neighbourhood panels or other decorations.
Compliant with PoE 802.3af
The port on the back panel support Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to W30AP.
Advanced Wireless Security
W30AP offers multi mechanism to prevent unauthenticated acces and protect data privacy .
1.64/128bit WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
2.Wireless Access Control based on the mac address of wireless adapter
3.Client Isolation and SSID isolation
VLAN Tagging For multi SSID
W30AP can be configured to broadcast up to two SSID. Each SSID can be tagged to a specified networkVLAN for di erent user access based on established access rights.

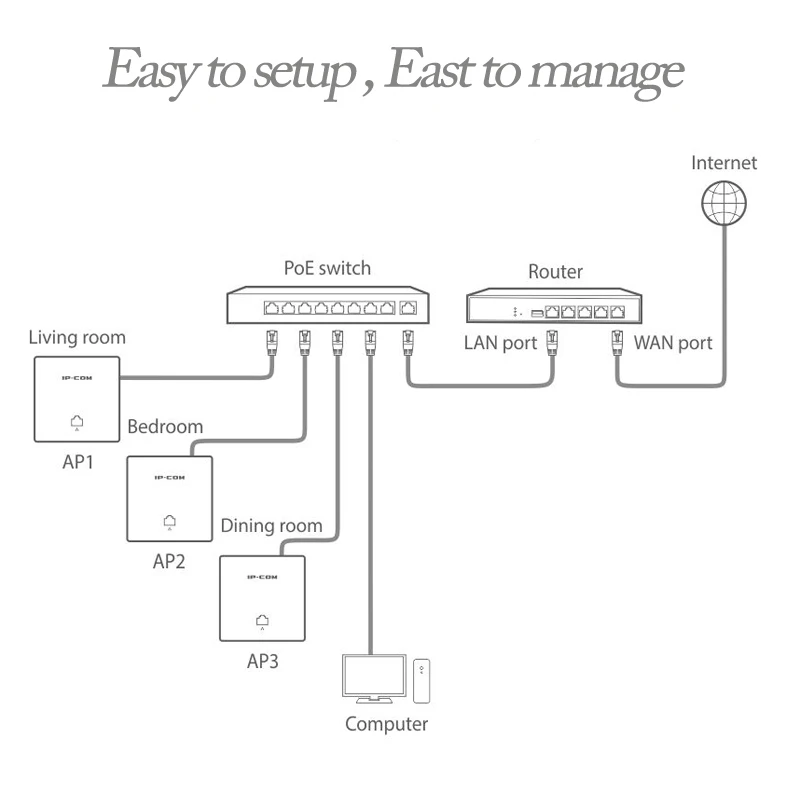

Easy to setup, Easy to manage
W30AP can be managed by AP Controller, the administrator can setup, manage and monitor all the Aps online status more easily.

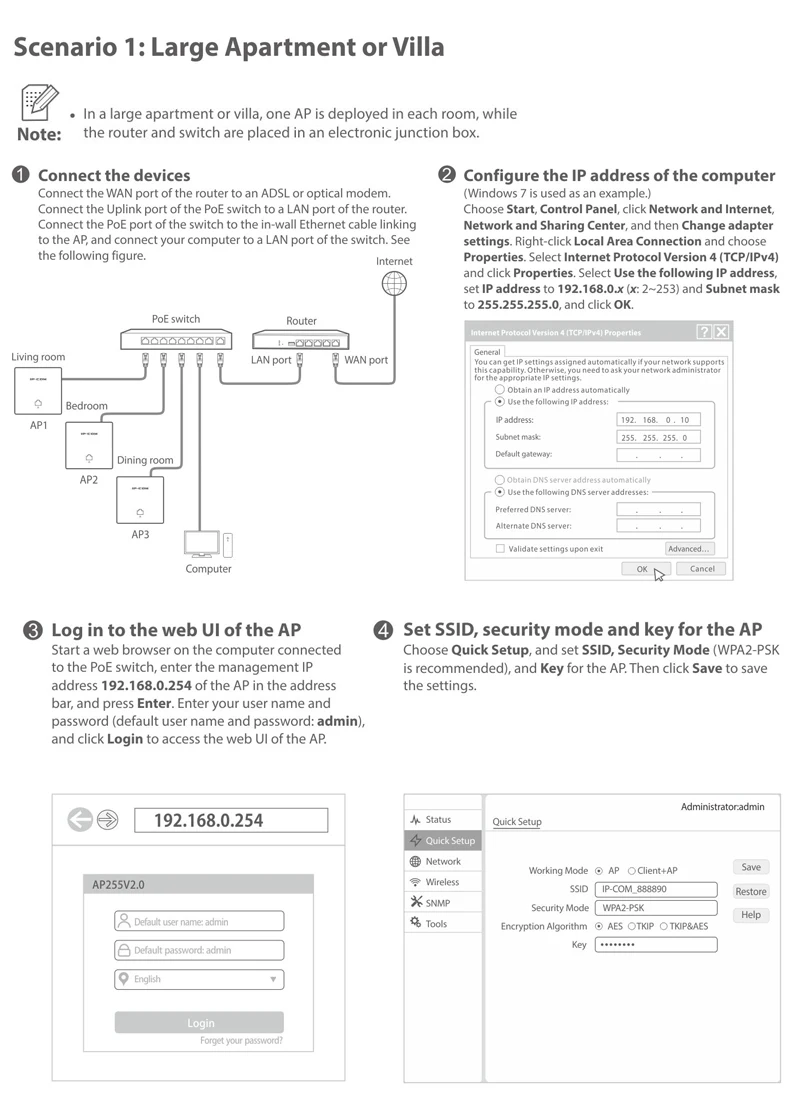

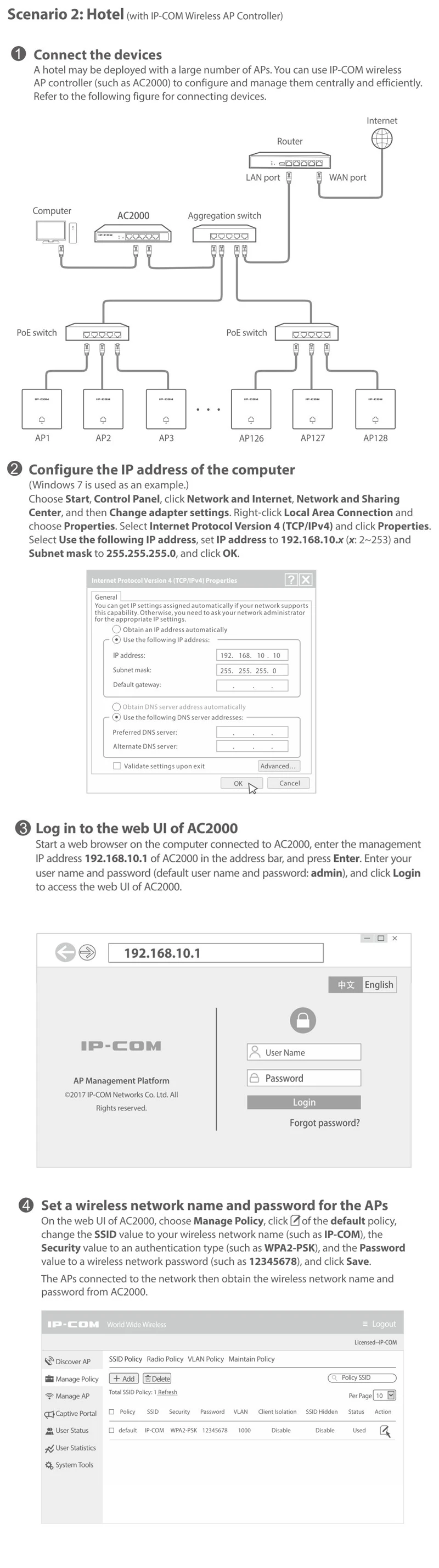

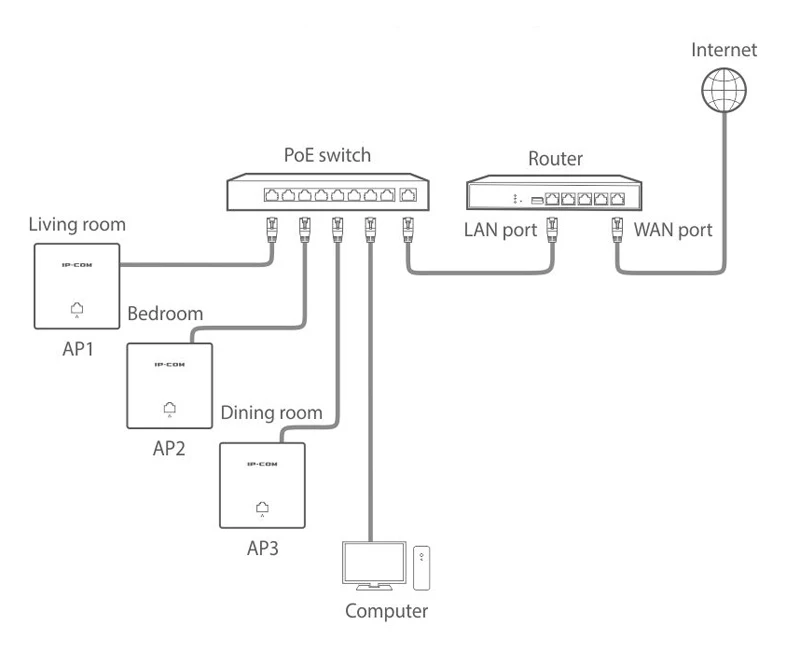

Application Scenarios
W30AP is designed to provide wifi for hotel rooms,villa, large apartment etc premise. Adopt of 86 Type wall mount junction box design, it can blend into existing decoration perferctly without any damage. Compliant with PoE 802.3af standard enable it to be deployed quickly. It is easy to setup, manage and monitor with IP-COM AP controller.
Product Specifications
| Product Model | W30AP | |||
| Deployment | In Wall | |||
| Dimensions | 86*86*35mm | |||
| Weight (package included) | 140.1g | |||
| Application Scenarios | WiFi coverage for hotel rooms,villa | |||
| Hardware Specifications | ||||
| Frequency Range | 2.4GHz | |||
| Maximum wireless speed | 300Mbps | |||

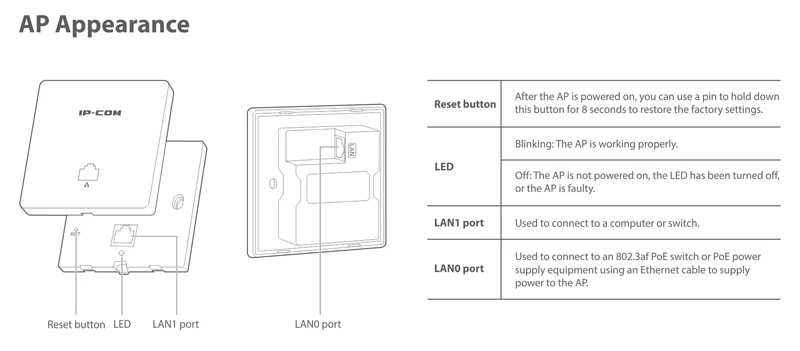

| Interface | 1*PoE+Data Input LAN | |||
| 1*Data Output LAN | ||||
| Button | 1*Reset | |||
| Antennas | 2dbi | |||
| Maximum Power Consumption | 4.6W | |||
| LED indicator | SYS | |||
| Power Supply | PoE 802.3af | |||
| Software Specifications | ||||
| Operating mode | AP/Client AP | |||
| Compliant Standards | IEEE 802.11n/g/b | |||
| Wireless Features | 2 SSID | |||
| Enable/Disable Wireless Radio | ||||
| SSID Hidden | ||||
| Wireless Client isolation | ||||
| Sensitivity Threshold | ||||
| WMM Capable | ||||
| APSD Capable | ||||
| Wireless Access Control | ||||
| Client Number Limitation For SSID | ||||
| Wireless Client list | ||||
| Wireless Security | VLAN Tagging for SSID | |||
| 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 | ||||
| Transmission Power | Adjustable power by 1dBm | |||
| Receiver sensitivity | MCS0: -90dbm MCS7: -70dbm | |||
| DHCP Server | DHCP Server &Clients list | |||
| Product Info | ||||
| VPN Pass-Through | PPTP,L2TP | |||
| Schedule Reboot | Support | |||
| Diagnosis Tool | Ping,Signal Scan | |||
| Management Tool | System Log | |||
| Firmware upgrade | ||||
| Backup/Restore Conguration | ||||
| Username Managerment | ||||
| Managed By Controller | AC1000,AC2000,AC3000 | |||
| Working Environment | ||||

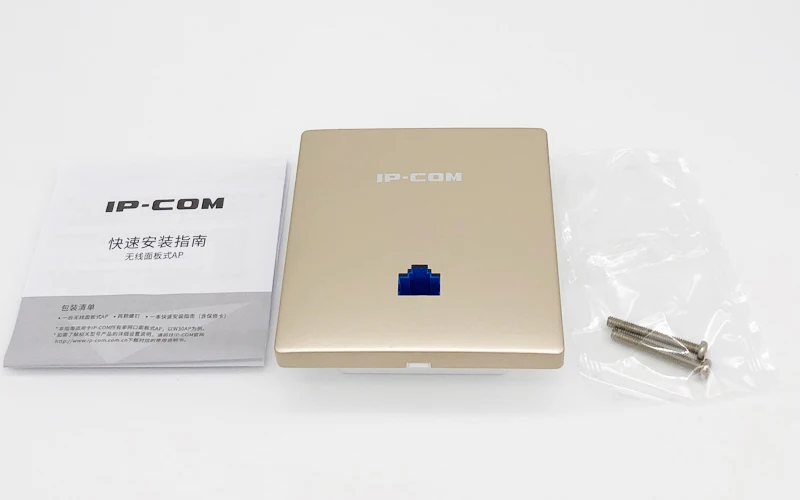

| Package Contents | 1*Wireless Access Point | |||
| 1*GPL | ||||
| 2*Screws | ||||
| 1*Quick Installation Guide | ||||
| Operating Temperature | -10℃ ~ 45℃ | |||
| Storage Temperature | -30℃ ~ 70℃ | |||
| Operating Humidity | 10%~90% non-condensing | |||
| Storage Humidity | 10%~90% non-condensing | |||
| Default IP | 192.168.0.254 | |||
| Default Login Username | admin | |||
| Default Login Password | admin | |||
| Certifications | CE/RoHS | |||
Product Show
Check This Video Reviews How to Use Wireless N Wifi Repeater 300 Mbps 802 11 AP Router Extender Booster
Check This Video Reviews Wireless Repeater Tutorial
Best Price Comparison With 2.4GHz 11n 300Mbps Wireless WiFi AP Access Point Router WiFi Repeater Extender, Indoor Wall Mount Standard 86*86mm Panel Design

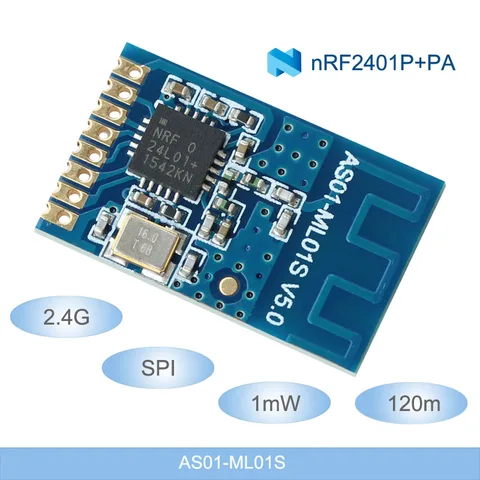

2.4GHz nRF24L01P Wireless rf Module for networking 2.4G SPI 1mW 120m Transceiver with PCB antenna SMD Transmitter and Receiver
Buy Now On Aliexpress

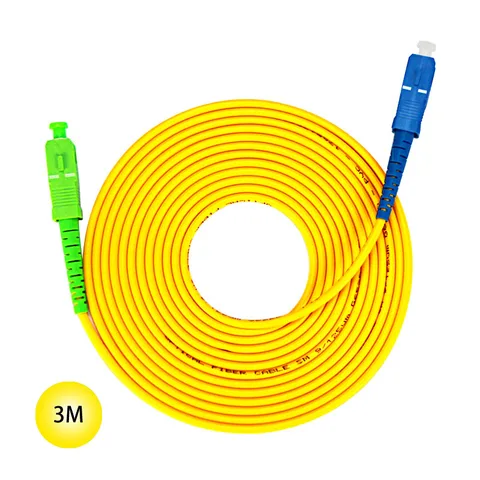

SC-APC to SC-UPC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC/UPC Polish Yellow Jacket OFNR Fiber Cable
Buy Now On Aliexpress
SC-APC to FC-APC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC Polish Yellow Jacket OFNR For Long Distances
Buy Now On Aliexpress

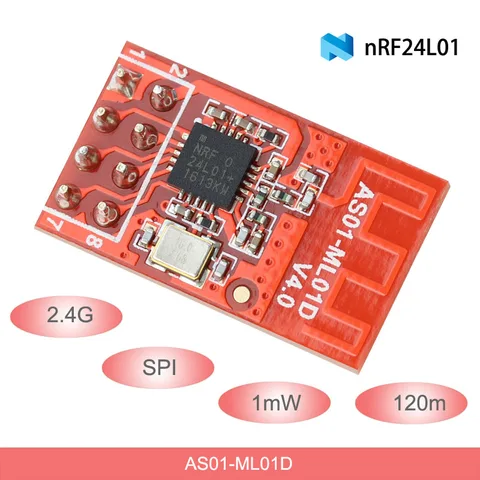

2.4G Wireless rf Module 120m 1mW DIP SPI rf Transmitter and Receiver nRF24L01P PCB antenna RF module
Buy Now On Aliexpress
100Pcs RJ11 6P2C Telephone Internet Modular Plug Jack RJ11 Connector 2pin Telephone crystal head
Buy Now On Aliexpress

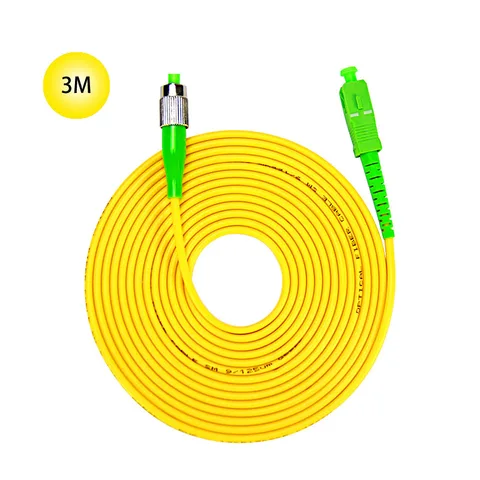

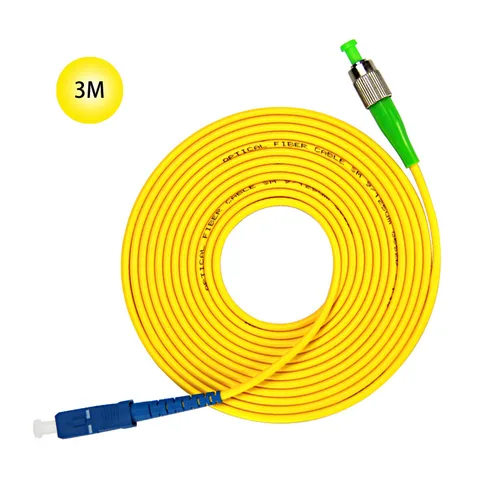

SC-UPC to FC-APC 9/125 Singlemode Fiber Patch Cable 3M Jumper Cable 9 Microns APC/UPC Polish Yellow Jacket OFNR Fiber Cable
Buy Now On Aliexpress

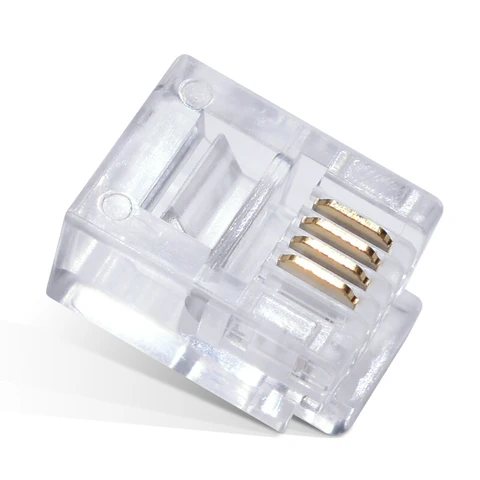

100Pcs RJ11 6P4C Telephone Internet Modular Plug Jack RJ11 Connector 4pin Telephone crystal head
Buy Now On Aliexpress

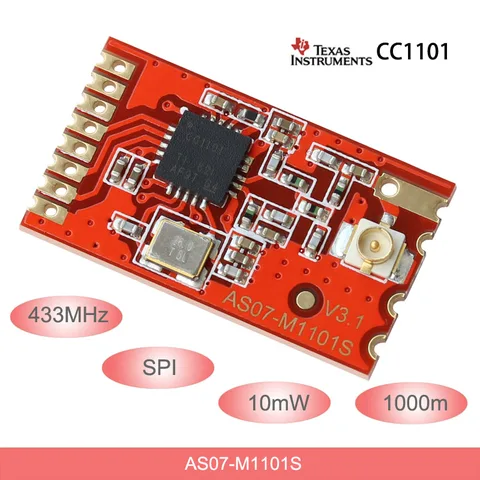

433MHz rf Module CC1101 Wireless Transmission SPI rf Transmitter and Receiver 10mW wireless transceiver IPEX
Buy Now On Aliexpress

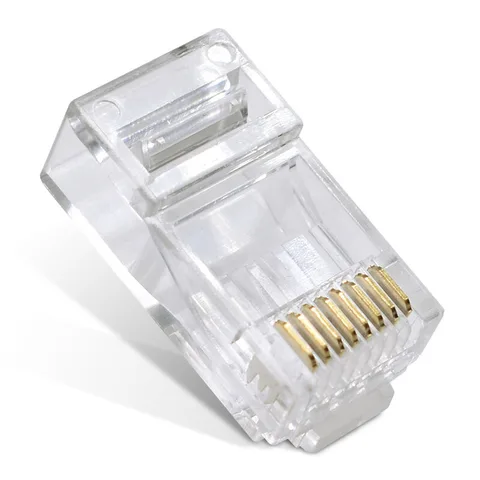

100Pcs Cat6 RJ45 Connector 8P8C Modular Ethernet Cable Head Plug Gold-plated Cat 6 Crimp Network RJ 45 Connector Cat6
Buy Now On Aliexpress

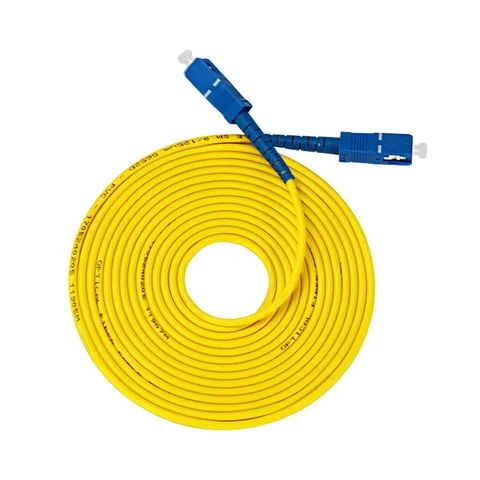

3m (10ft) SC UPC to SC UPC Simplex OS2 Single Mode PVC (OFNR) 3.0mm SC-SC Singlemode Simplex 9/125 Fiber Optic Patch Cable
Buy Now On Aliexpress
TP-Link 300MBbps Indoor Wall Embedded Wireless WiFi Router repeater TL-AP300I-DC AP Wireless Access Point 9VDC/0.6A DC power
Buy Now On Aliexpress

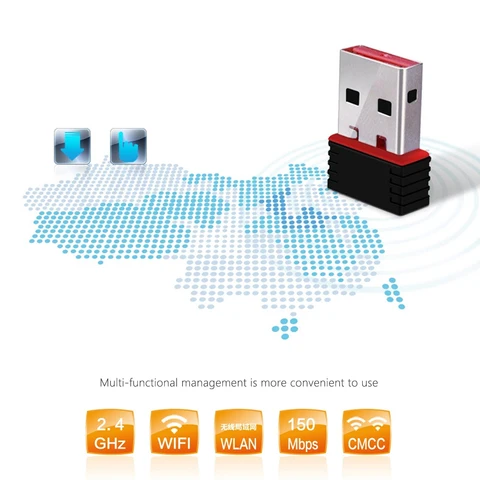

NOYOKERE Mini USB 2.0 WiFi Adapter N 802.11 b/g/n Wi-Fi Dongle High Gain 150Mbps Wireless Antenna wifi for computer Phone
